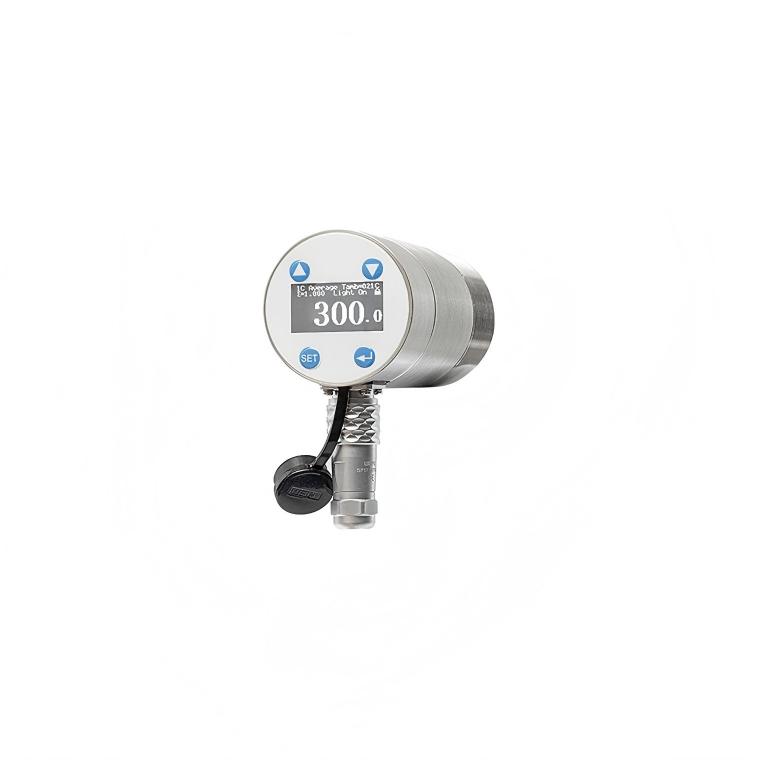

स्टील रोल कोर इन्फ्रारेड थर्मामीटर

Model

MARS-G-1508

Measuring Range

150℃～800℃

Detector

InGaAs( Indium gallium arsenic)

1-color Wavelength

( 1.45 ~2.1) μm

Main Applications

Heat treatment, Galvanized wire, Nonferrous metal processing, annealing furnace

Distance Coefficient

100:1

Measuring Distance

Standard focal length：adjustable from 0.35m to infinite, near focal length：0.15m～0.5m

Measuring Accuracy

±0.5%T（T is measured value）

Resolution

0.1℃

Repeat Accuracy

±2℃

1-color Coefficient

0.100～1.000，adjustable in 0.001 increment

Response Time

Fastest 5ms, 5ms-99.99s adjustable

Signal processing

Peak value, valley value, average temperature value; Ambient temperature too high/low alarm; power down protection; and others function etc.

Output

Multiple analog outputs 16bit（4mA～20mA, 0mA～20mA, 0V～5V, 0V～10V optional), output resolution 16bit, accurate to 0.1℃, maximum current loop output load 600Ω，maximum current output load 10mA

Alarm output：Upper limit、Lower limit alarm，with photocouple relay has unlimited service life，

On resistance≤ 1Ω ，maximum allowed voltage: AC42V or DC60V ，Maximum allowed

current:100mA ，Response time: 2ms

RS4 85 output ，capable parameter modification, data recording and query function

Display Mode

With self- illumination industrial gread OLED display screen

Power Supply

DC (20 ~30) V, power consumption：5W (24V@200mA) , With over voltage, over current, short circuit protection, With Built-in EMI filter, can resist 2500VDCpalus group interferance.

Ambient

temperature

compensation

Built- in ambient temperature compensation, almost unaffected by ambient temperature changes.

Aiming Method

Built- in visible high brightness green light or eyepiece aiming

Interface

With fully sealed plug

Operating Environment

without water cooling:  -20℃ ~+60℃

with water cooling: -20℃ ~+200℃

Protection Level

IP65
